| Brand Name : | ON |
| Model Number : | NTTFS3A08PZTAG |
| Price : | Discussible |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 10000pcs/one month |
| Delivery Time : | 3~10 days |
NTTFS3A08PZTAG Transistors FETs MOSFETs Single P-CH 20V 9A 8WDFN P-Channel
Products Description:
1. -20V,-15A,6.7 Mω, P-channel power MOSFET
2. P-channel 20V 9A (Ta) 840mW (Ta) Surface Mount 8-wdfn (3.3x3.3)
3. Trans MOSFET P-CH 20V 22A 8-Pin WDFN EP T/R
4. components -20V,-15A,6.7m ,P channel power MOSFETMOS NTTFS3A08PZTAG
Technological Parameters:
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 6.7mOhm @ 12A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 56 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 5000 pF @ 10 V |
| Power Dissipation (Max) | 840mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-WDFN (3.3x3.3) |
| Base Product Number | NTTFS3 |

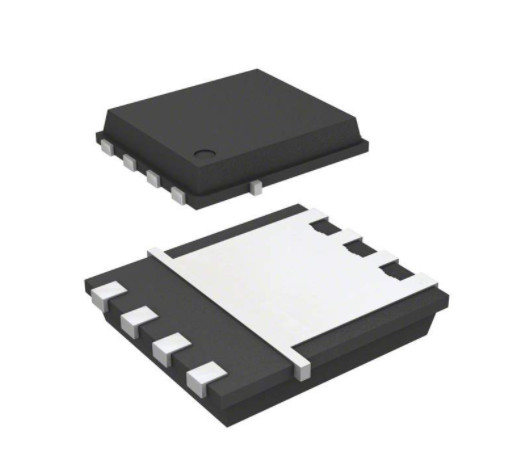

Product picture:
Quality assurance:
1. Every production process has a special person to test to ensure quality
2. Have professional engineers to check the quality
3. All products have passed CE, FCC, ROHS and other certifications
|
|
